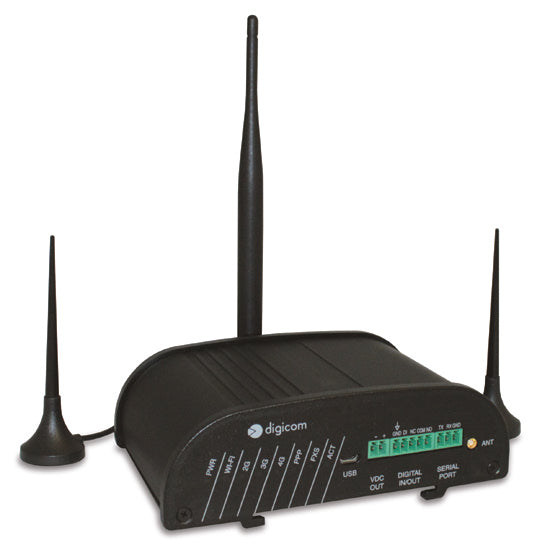

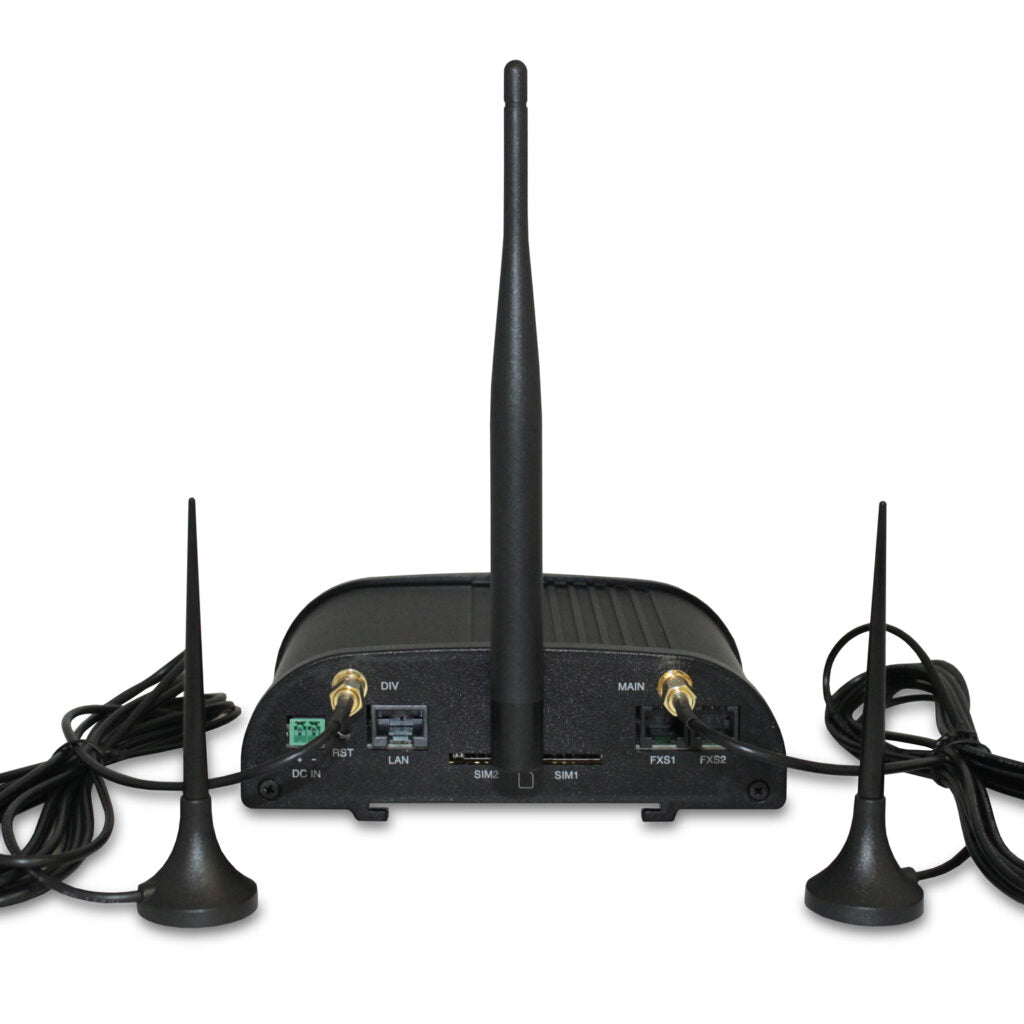

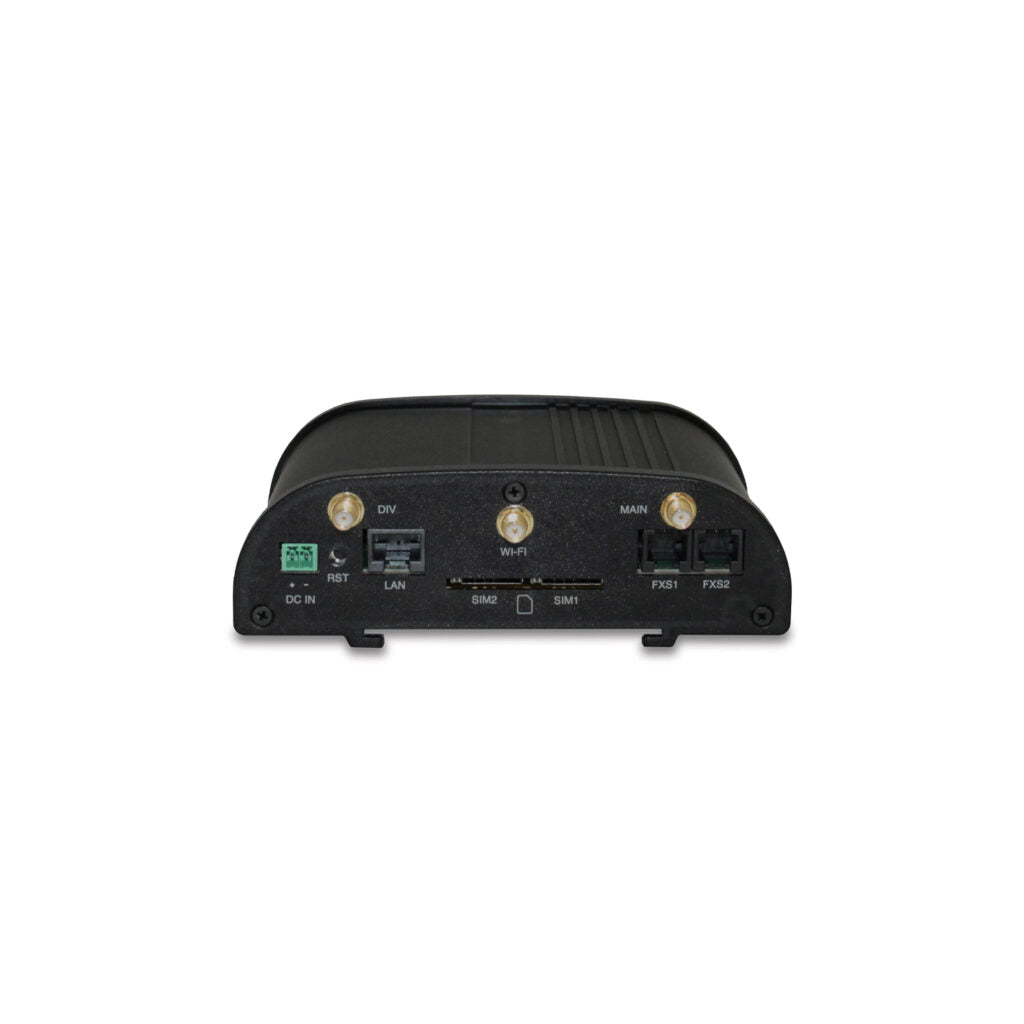

4G LiftGate 3000 is designed to be the technological core that connects all the devices present in the new and already installed lifts, it plays the strategic role of the solution.
Emergency telephone systems, displays, sensors and video cameras are shared in the sole device able to connect also the control panel to a Cloud.
Just one SIM, or two in case a backup is needed, to manage all the needs of the lift: from voice support for SOS and periodical calls to telemetry of the control panel through LAN.
Advanced functionalities such as remote management via SMS, make it particularly suitable for Lift and EEIoT applications.
- • IoT Gateway 4G/LTE special for lift
- • 4G/3G/2G mobile connection
- • 4G VoLTE Ready
- • 2 FXS Voice ports for remote alarm and intercom
- • 1 10/100 LAN port
- • Integrated Dual-Band Wi-Fi module
- • BLE 5.0 interface
- • Radio 868MHz interface for sensors
- • Dual SIM
- • Integrated backup battery
- • 1 RS485 or RS232 serial port
- • 1 digital input
- • 1 relay output
- • SMS remote management
- • MQTT support
- • Custom applications supported
- Product code 8D5893
- Product code 8D5893NL – version without Ethernet port
